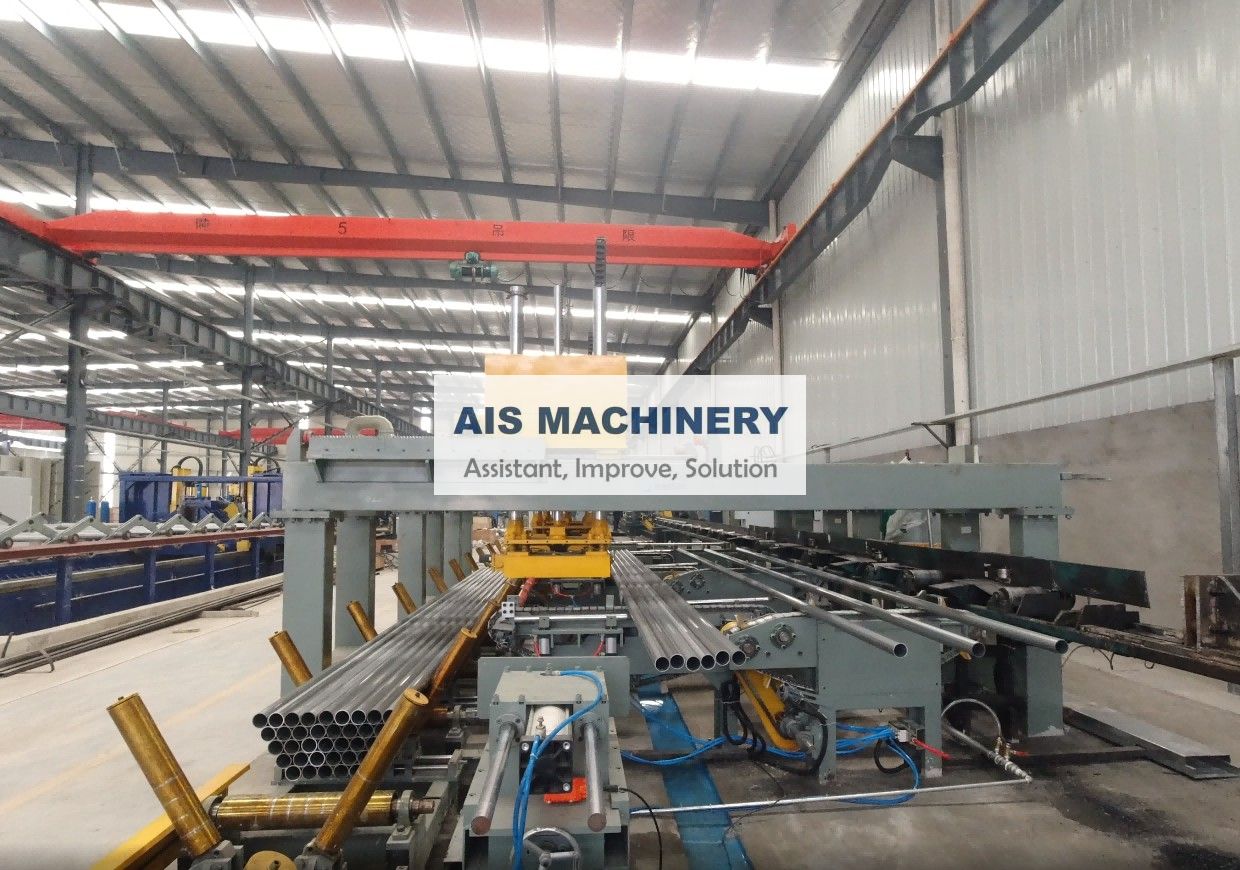

Automatic Steel Pipe Electromagnetic Palletizing Machine

Magnetic Palletizer on Gantry System for Steel pipe
In metal industry, steel pipe sometimes become uneven or are slightly bent if the trapping stress are not at an equilibrium across all directions of the pipe. In that case, leveling would be the next procedure. Magnetic palletizer, for palletizing and depalletizing of industrial steel material in automatic transfer lines, are frequently applied in the steel pipe leveling system.

Product Detail

Automatic Steel Pipe Electromagnetic Palletizing Machine

Electromagnetic palletizer

Palletizing Steel Pipe with Magnetic Gripper

lectromagnetic Suction Cup Palletizer

Magnetic Palletizer on Gantry System for Steel pipe

In metal industry, steel pipe sometimes become uneven or are slightly bent if the trapping stress are not at an equilibrium across all directions of the pipe. In that case, leveling would be the next procedure. Magnetic palletizer, for palletizing and depalletizing of industrial steel material in automatic transfer lines, are frequently applied in the steel pipe leveling system.

Round Tube OD	Max 127mm
Square Hollow Section	Max 100x100mm
Tube Cut Length	Min 6 meter, Max 12 meter
Package Weight	Max 8tons per bundle
Pipe bundle	By automatic
Pipe package	By automatic
Pipe transfer	Include
Pipe kick in and out	Include
Bundle	By Chain

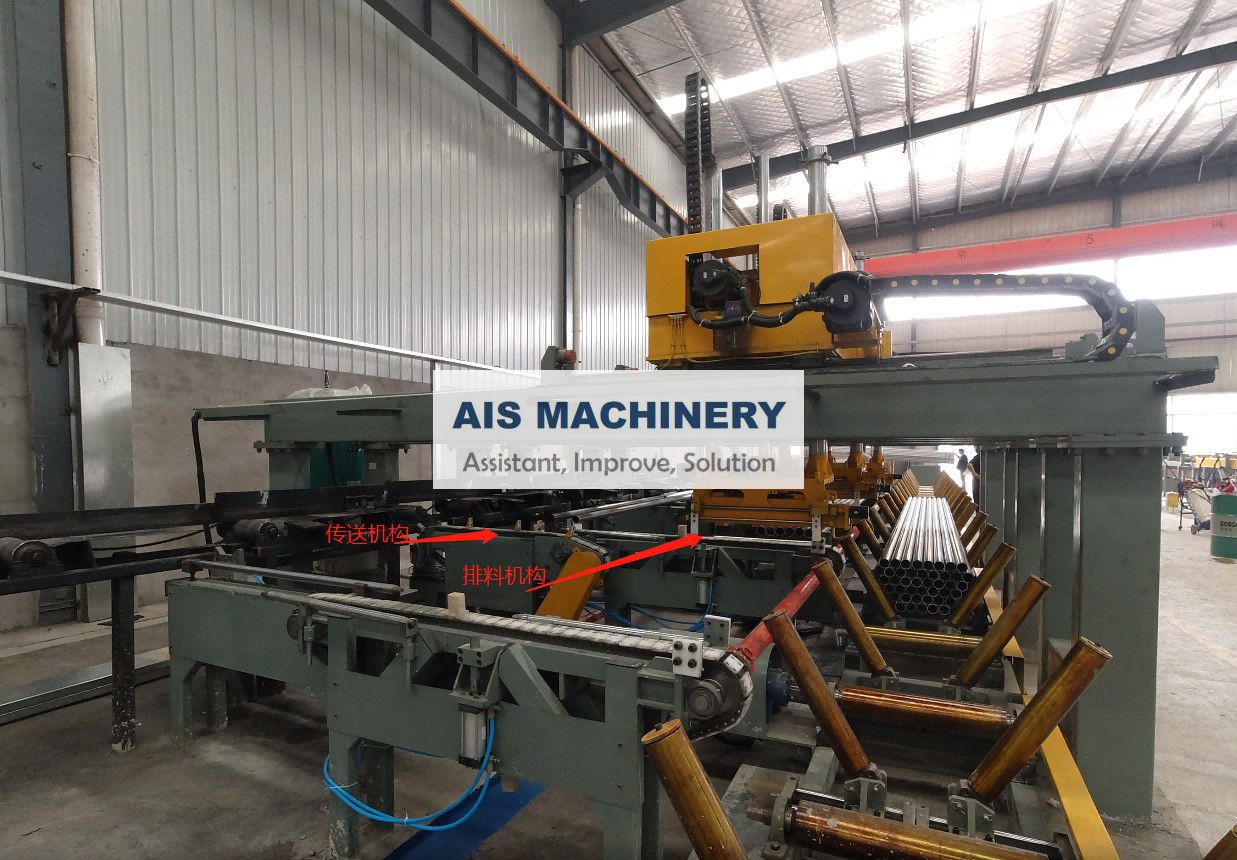

Here in the picture, is a application of magnetic palletizer . It utilizes 4 magnetic heads, forming a uniform and strong clamping force on the steel pipe, for consecutive loading and unloading without deformation or dents to the surface of the plates.

Due to the electro-permanent magnet equipped inside, the lifted plate won't drop or fall off if a power failure occurs. Electricity is only needed in magnetization and demagnetization phase of the magnets inside. The whole palletizing and depalletizing cycle is shortened because of the fast and safe handling operation.

Featured with safety & efficiency, increased production output in the automated handling of products in various industries, magnetic palletizer has gained a great popularity and been widely used in pick and place equipment, general engineering, or as magnetic grippers in robotics, packaging machinery, palletizing & depalletizing systems for manufacturing and assembly lines in automation.

Palletizing means moving products from the production line to a pallet for shipping or storage. The trick is to stack the cartons optimally to maximize the volume on the pallet while being sturdy enough not to shift, tip over or crush each other.

Customers all over the world acknowledged our palletizers:

Safety

Ease of use

Compact footprint

Accessibility

Different Types of Bundle and Stack machine too choose:
