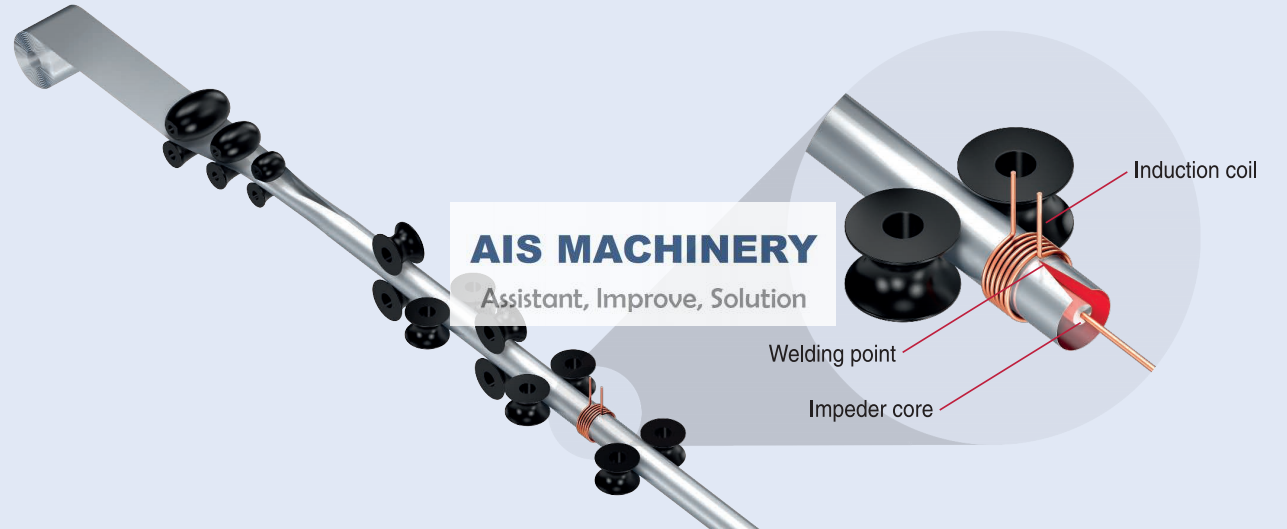

Impeder Cores For High Frequency Welding

Ferrite impeder core PRODUCTS FOR HIGH FREQUENCY WELDING OF TUBES ASSEMBLY IMPEDERS ,THROUGH FLOW IMPEDERS

Ferrite are available in length options of 200mm, 230mm .

Impeder Cooling

All of our impeders are designed to ensure effective cooling and protection of the ferrite core inside the impeder. It is essential that ferrite is cooled efficiently to maximise the welding efficiency and maintain stable parameters for product quality.

Coolant should be clean, preferably filtered. A pressure will ensure adequate cooling under most operating conditions. Coolant flow requirements vary widely due to inlet temperature, weld power, frequency and weld area geometry. In high power density situations and at high ambient temperatures, a small chiller for impeder and work coil coolant can greatly improve efficiency.

Cooling by air or other gas is not recommended, but can be useful in special situations where the presence of water inside the tube cannot be tolerated. Gas, such as nitrogen, have a density that is at least 1,000 times less than that of water, so coolant volume must be increased accordingly.

Our Spare Parts Apply:

1. Roller, Mould, Cr12, Cr12Mov material, D2,D3 material

2. Ferrite, Impeder, Fiberglass tube

3. HSS saw blades, TCT Saw blades, Friction saw blades

4. OD burr remove inserts, ID burr remover inserts

5. HF welder Induction Coil and other HF welder spare parts

6. Copper tube for induction Coil, PTFE pipe for Induction Coil

7. Mosfet, Boards

8. Steel pipe Strapping machine

9. Zinc Spray Machine, Zinc wire, Zinc spray gun

Why Choose Us?

Leading Technology, Reliable Quality, Excellent Service!

Optimized Design, High quality material select!

Heat treatment process guarantee!

Spiral bevel gear, drum gear coupling and carburization.

Gear teeth quenching.

Driven system stable, efficient and wearable with lower noise.

High precision wear resisting and Long life of rollers.

All the machine Lathes, Key Grooves are positioned and Milled by CNC.
