China 3M Steel Strip Spiral Horizontal Accumulator

Graphic
Detail

China 3M Steel Strip Spiral Horizontal Accumulator

accumulator

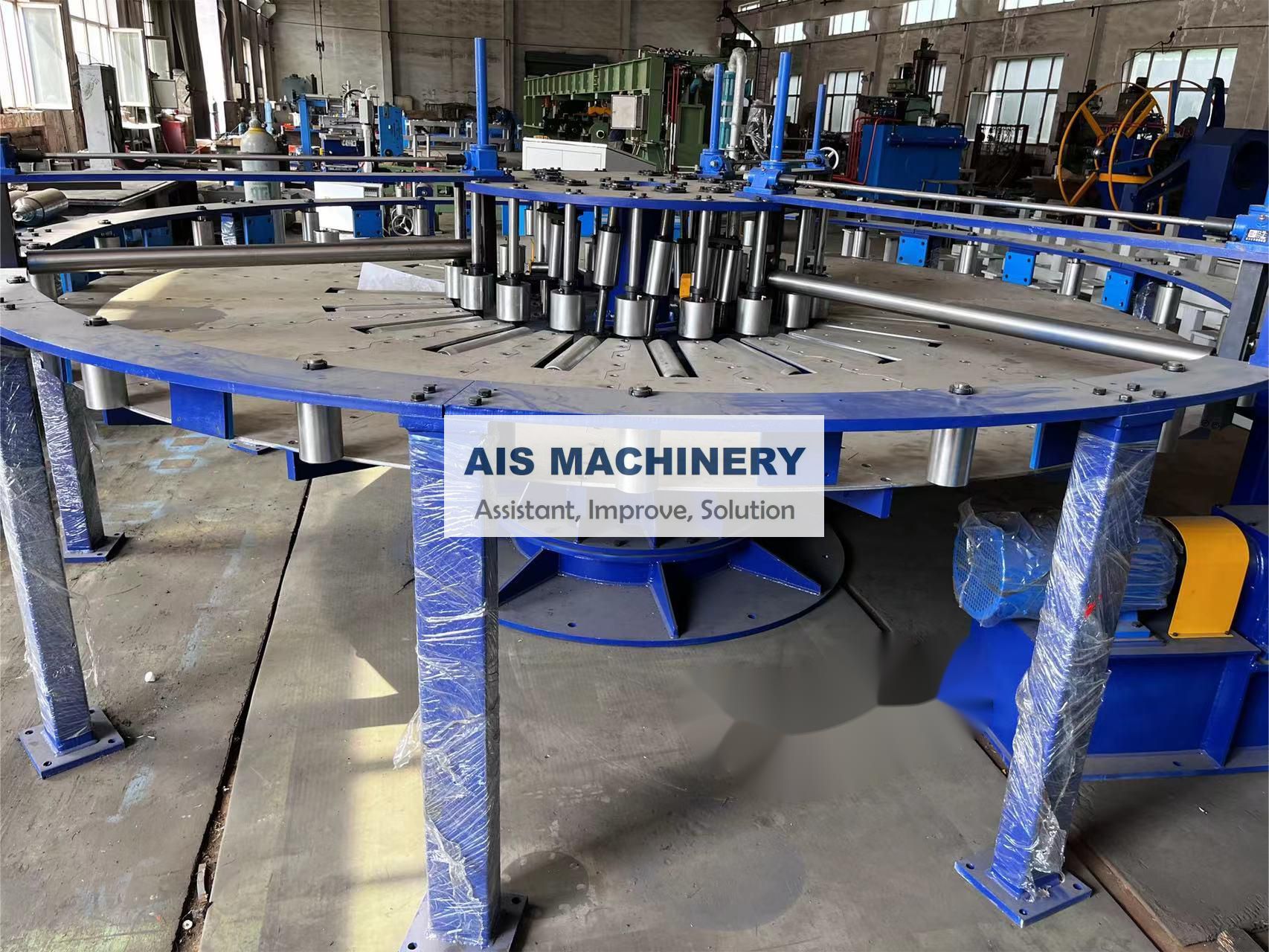

The principle of operation is simple. The strip is fed into the accumulator by a set of pinch rolls. As in all horizontal accumulators, the strip is turned 90 degrees before it enters the pinch rolls of the machine.

accumulator

Product Detail

The pinch rolls are driven by a direct current (DC) motor at two to three times line speed. As the strip enters the accumulator, it is supported immediately by a rotary table. The rotating table is driven by a separate DC motor, and the OD is synchronized with the pinch roll.

Therefore, the entering strip has no resistance, and the driven support table helps pull and guide the strip into the accumulator. This reduces the chances of strip cobbling, jam-ups, marking, tension, etc. The inside wrap of the accumulated coil is pulled to the center takeout arbor by the mill.

The drive has three modes of operation: stopped, line synchronized, and high-speed fill. Once the accumulator reaches the full condition, the drive automatically goes into the synchronized mode, and the accumulator stays full until the supply of strip from the uncoiler is depleted.

This accumulator is simple in design, has few moving parts, and stores a lot of strip in a small space.

1. BASIC DESIGN DATA

Design of the proposed line is based on following specification:

▪Raw Material Specification

Raw Material Feeding	Low Carbon steel & Galvanized steel,S235
Material Tensile Strength	Max 523MPa
Material Yield Strength	Max 430MPa
Coil OD	1500mm to 2000mm
Coil ID	760mm&610mm (customer order)
Coil Weight	Max 5000 kg
Strip Width	Min 30mm, Max 160mm
Strip Width Tolerance	± 0.5 mm
Strip Thickness	Min0.5 Max 2.0 mm

2. TECHNICAL DESCRIPTION AND SPECIFIATIONS

Accumulator Loop diameter	3.0m
Total area installation	5m around
Accumulator type	Disk type
Storage type	Inside input, outside output.
Storage capacity	Max 5tons
Feeding speed	Max 150m/min
Accumulator output speed	Depend on tube mill speed

We provides all equipment to tube mill entry section:

* Coil Car

* Single And Double Heads Un-coiler & Hydraulic And Pneumatic Un-coiler

* Peeler and hold down roll arm

* Flattening Machine

* Automatic and Semi Auto Shearer & Butt Welder

* Vertical Cage Accumulator & Horizontal Loop Accumulator & Landing Horizontal Spiral Loop Accumulator

Why Choose Us?

Leading Technology, Reliable Quality, Excellent Service!

Optimized Design, High quality material select!

Heat treatment process guarantee!

Spiral bevel gear, drum gear coupling and carburization.

Gear teeth quenching.

Driven system stable, efficient and wearable with lower noise.

High precision wear resisting and Long life of rollers.

All the machine Lathes, Key Grooves are positioned and Milled by CNC.
