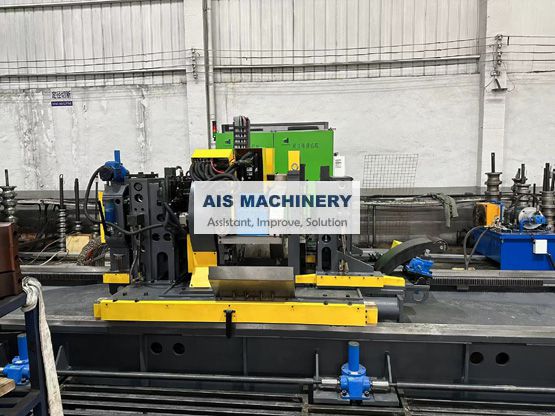

The CNC Profiling Milling And Fixed-length Flying Saw Machine

The CNC profiling milling and fixed-length flying saw machine is used to cut steel pipes to length in the continuous production of round pipes or square rectangular pipes. The steel pipe is cut along the outer contour of the pipe by 2 milling saw blades. The CNC profiling milling and fixed-length flying saw machine is composed of two parts: mechanical structure and automatic control system. The user sets the cutting length, pipe parameters and other information on the operation console, and the CNC profiling milling and fixed-length flying saw machine automatically completes the full cycle process of quick start, synchronous tracking, clamping and cutting, and quick return.

Copy milling Structural features:

1. Save saw blades and reduce costs

Through the R-θ control method, the saw blade can be cut along the pipe wall to realize the profiling pipe wall cutting that simulates the pipe shape track, thereby reducing the size of the saw blade used, and the purchase price of two small-sized saw blades is lower than the conventional one. Cut in half the way of the larger saw blade.

2. Inlaid saw blades increase strength

This model adopts high-strength and high-rigidity inlaid saw blades, which can cut welded pipes with internal ribs and high-strength material welded pipes. The application range is wider, and the life of the saw blade is also greatly improved. The cutting life is more than twice that of ordinary saw blades.

3. Online fixed-length cutting, stable quality and high efficiency

According to the cutting pipe type, pipe diameter, wall thickness, production line speed requirements and other working conditions, we can customize solutions for users through the servo system, so as to improve equipment efficiency and stability, and save users' material and time costs.

scope of application

Cutting effect comparison display

TUBE MILL FINISHING SECTION

We provides all equipment to tube mill Finishing section:

1. Eddy current machine

2. Seam annealing machine

3. Straightener machine

4. Chamfer and end facer machine

5. Hydro Tester machine

6. Threading machine

7. Painting and oil machine

8. Automatic bundle and package machine

9. Drilling machine
