Automatic Upright Roll Forming Machine for Warehouse Rack and Shelving Systems

The Upright Roll Forming Machine is a specialized cold roll forming production line designed to manufacture steel upright profiles for warehouse racking and industrial shelving systems. It converts galvanized or cold rolled steel coils into high-strength uprights with precise punching, slotting, roll forming, and automatic cutting in one continuous process. Modern storage rack uprights typically require multiple hole patterns and slots, making the punching system one of the most important parts of the production line.

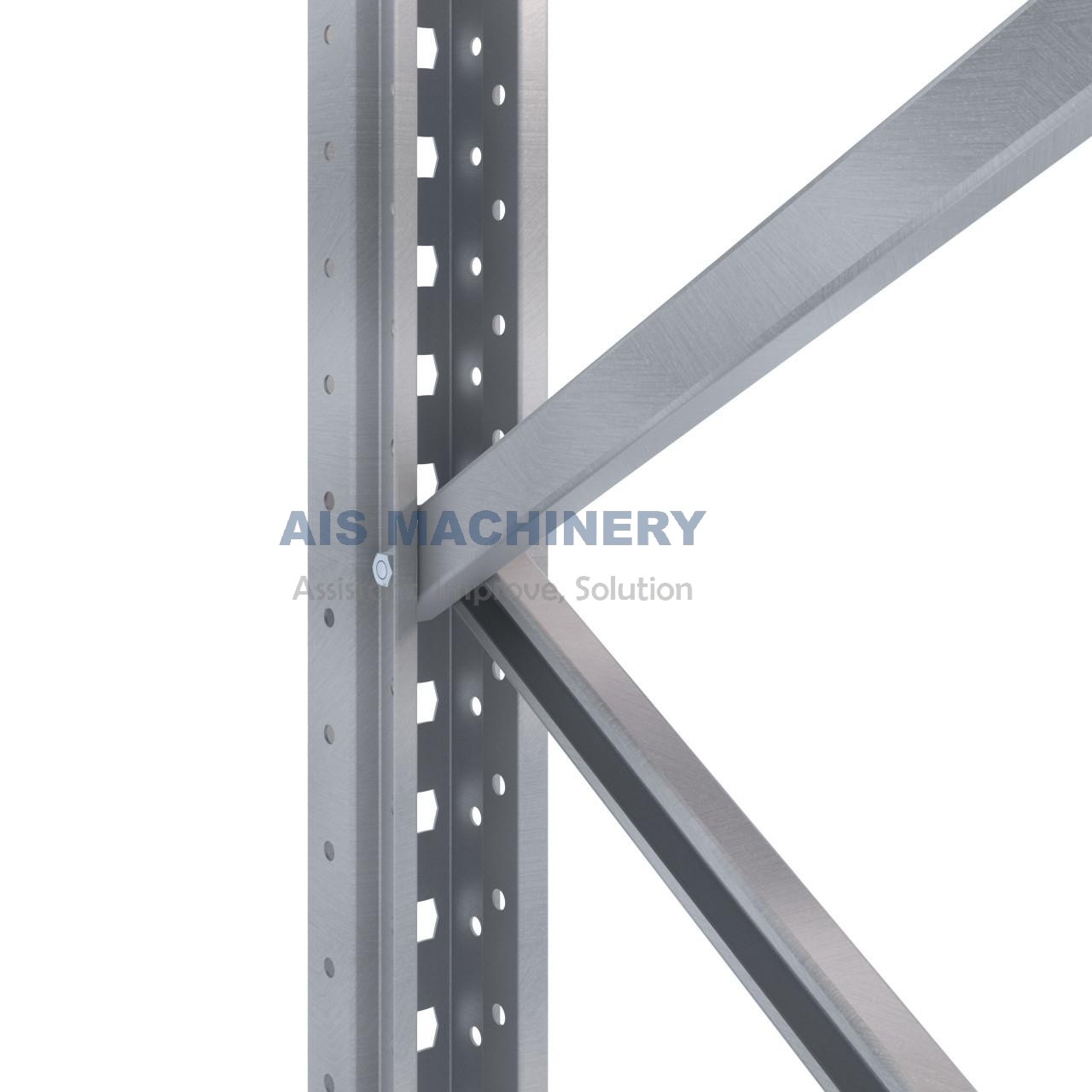

An upright is the vertical load-bearing column of a storage rack. It connects with beams through punched holes or slots, allowing shelves to be adjusted to different heights while maintaining structural strength. Different racking systems use different upright cross-sections and hole designs, so the machine is always customized according to the customer's profile drawing.

• ●Warehouse pallet racking

• ●Heavy-duty storage systems

• ●Supermarket shelving

• ●Industrial shelving

• ●Logistics and AS/RS storage systems

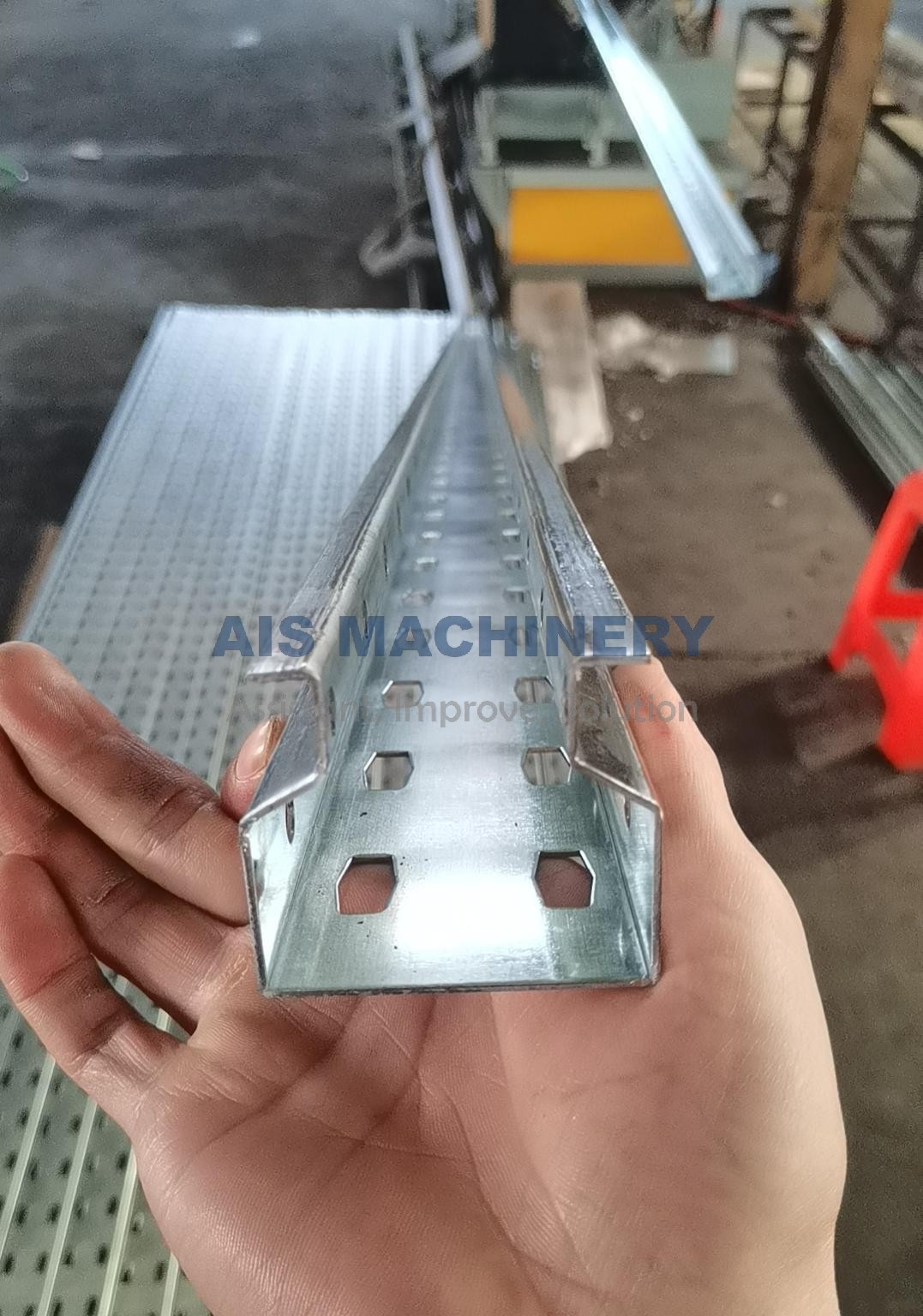

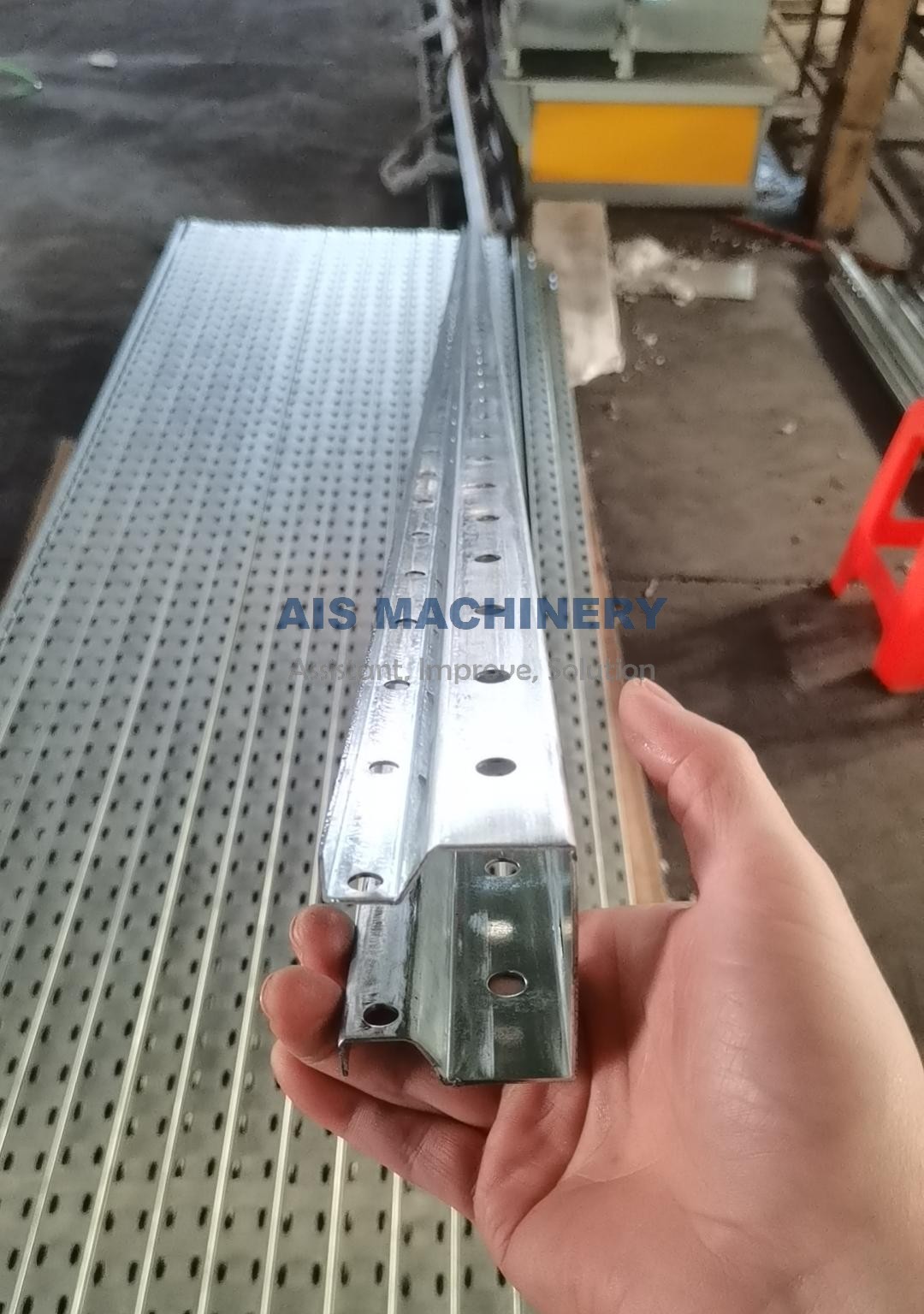

Finished Profile Features

Unlike ordinary roll formed sections, upright profiles usually contain multiple machining features produced inline before forming.

Because the hole shape, spacing, slot size, and profile dimensions vary between manufacturers, a profile drawing is required before machine design and quotation. This ensures the punching dies and roll tooling match your product exactly.

Production Process

The complete production line integrates material feeding, punching, forming, and cutting into one automatic workflow.

Workflow: Material Rack → Leveling Device → Hydraulic Punching Unit → Main Roll Forming Unit → Shearing Device

Main Components of the Upright Roll Forming Machine

1. Material Rack (Decoiler)

The material rack holds the steel coil and feeds it smoothly into the production line. Hydraulic expansion keeps the coil stable during continuous production and reduces manual handling.

Function: Coil loading and automatic feeding

2. Leveling Device

Steel coils naturally contain internal stress and coil curvature. The leveling device straightens the strip before punching, ensuring accurate hole positioning and stable roll forming.

Function: Remove coil stress and improve forming accuracy

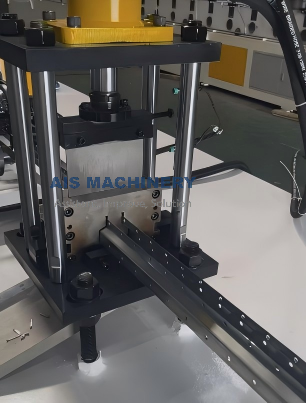

3. Hydraulic Punching Unit

This is the core section of the upright production line. The hydraulic punching system produces various hole patterns and slots according to the customer's design, including teardrop holes, butterfly holes, round holes, and rectangular slots.

Advantages:

• High punching accuracy

• Consistent hole spacing

• Custom punching dies available

• Suitable for multiple hole combinations

The punching tooling is fully customized based on your profile drawing.

After punching, the strip enters the roll forming machine where multiple roller stations gradually bend the steel into the final upright section. Progressive forming minimizes material deformation while maintaining dimensional consistency.

Features:

• Precision roller tooling

• Stable profile dimensions

• Smooth profile surface

• Long service life rollers

5. Shearing Device

The hydraulic shearing device cuts each finished upright to the programmed length automatically. The PLC system controls cutting length with high repeatability for continuous production.

Function: Automatic cut-to-length with clean edges

Technical Features

Why Profile Drawings Are Essential

Every warehouse racking manufacturer uses a different upright design. Even profiles with similar dimensions may have completely different hole spacing, slot geometry, or connection systems. For this reason, the machine cannot be selected only by width and thickness.

Please provide one of the following:

• 2D CAD drawing (DWG/DXF)

• PDF profile drawing with dimensions

• Sample upright profile

• Hole layout and pitch dimensions

Our engineers will design the punching molds, roller stations, and cutting system according to your profile to ensure perfect compatibility.

The finished upright profiles are widely used in:

• Warehouse pallet racking

• Heavy-duty industrial shelving

• Retail display shelving

• Logistics storage systems

• Automated warehouse (AS/RS) structures

Why Choose Our Upright Roll Forming Machine?

• Fully automatic production from steel coil to finished upright

• High-precision hydraulic punching for complex hole patterns

• Custom roll tooling designed from your profile drawing

• Stable forming with excellent dimensional accuracy

• PLC control for easy operation and efficient production

• Suitable for galvanized and cold rolled steel materials

Our upright roll forming solutions are built specifically for manufacturers of warehouse racking and shelving systems, delivering reliable, high-efficiency production for customized steel upright profiles.
