Why the Right Impeder Can Reduce Welding Costs in ERW Tube Mills

A Small Part That Makes a Big Difference

When customers discuss an ERW tube mill, they often focus on the forming section, HF welder, or flying saw. However, one inexpensive component has a surprisingly large impact on production costs—the impeder.

A properly matched impeder can improve welding efficiency, reduce unnecessary power consumption, protect ferrite rods, and help maintain consistent weld quality. For tube manufacturers running long production hours, this small spare part can make a noticeable difference in operating costs.

Why Does an Impeder Affect Energy Consumption?

High-frequency welding relies on concentrating electrical current along the edges of the steel strip. If the impeder is the wrong size, worn out, or poorly matched, the current spreads inefficiently instead of focusing on the weld seam.

This usually leads to:

• ✅Higher HF power consumption

• ✅Unstable welding temperature

• ✅More weld defects and rework

• ✅Faster ferrite rod wear

Replacing an unsuitable impeder is often much more economical than increasing welding power to solve these problems.

Signs Your Impeder May Need Replacement

Many factories continue using impeders until they completely fail. In reality, performance usually declines much earlier.

Common warning signs include:

• Welding power gradually increases for the same pipe size.

• Ferrite rods crack or wear frequently.

• Weld quality becomes inconsistent.

• Cooling water flow decreases due to internal blockage.

Regular inspection helps avoid unexpected production downtime.

Standard Impeder or Return Impeder?

Different HF welding systems require different impeder designs.

Selecting the correct structure is just as important as selecting the correct dimensions.

Choosing the Correct Size

An impeder is not a universal spare part. The following information is normally required before manufacturing:

• Tube outside diameter

• Impeder casing OD and length

• Ferrite rod dimensions

• Thread specification

• Existing HF welder model

Providing accurate dimensions ensures proper installation and optimal welding performance.

AIS Machinery HF Welding Spare Parts

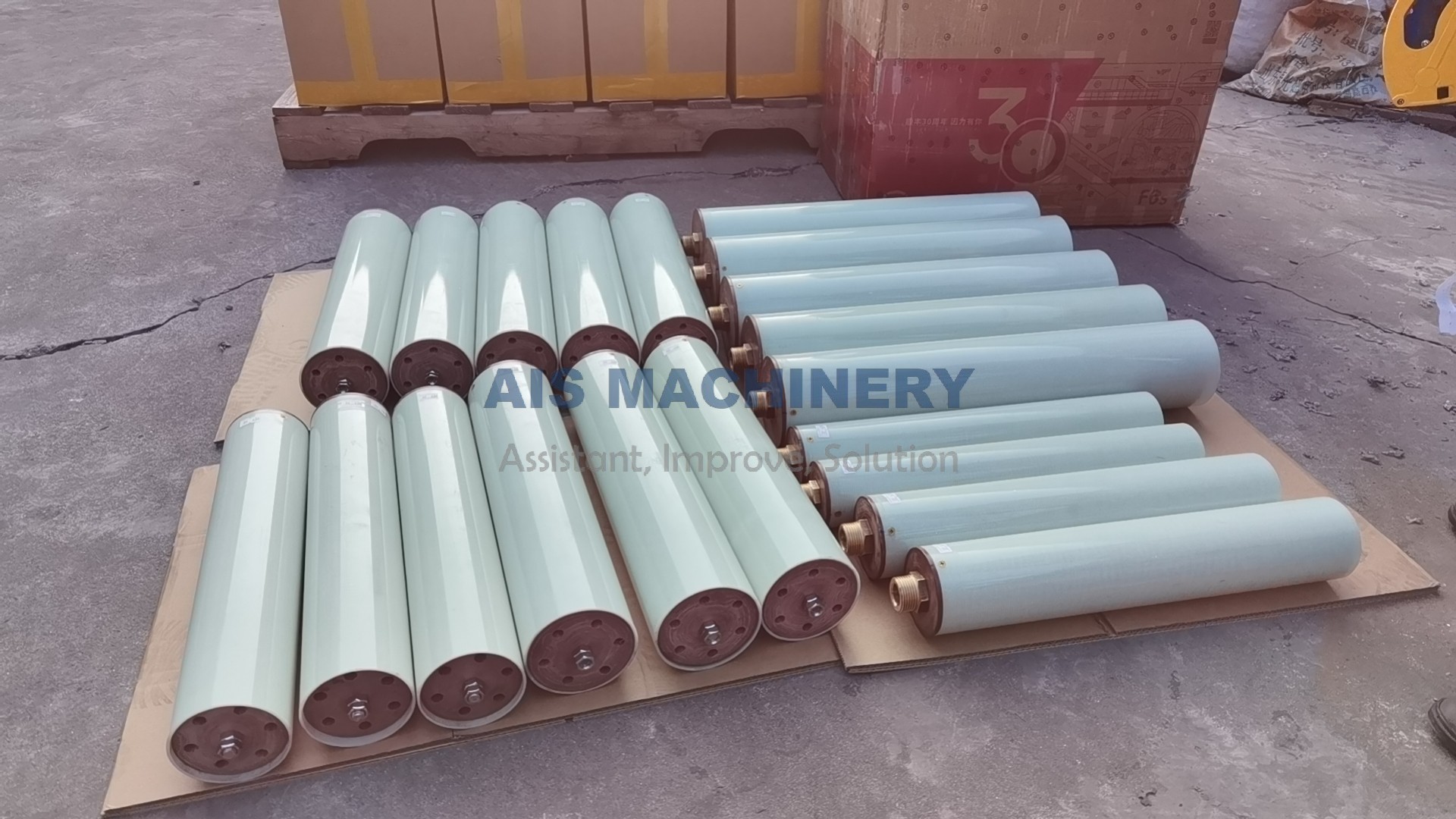

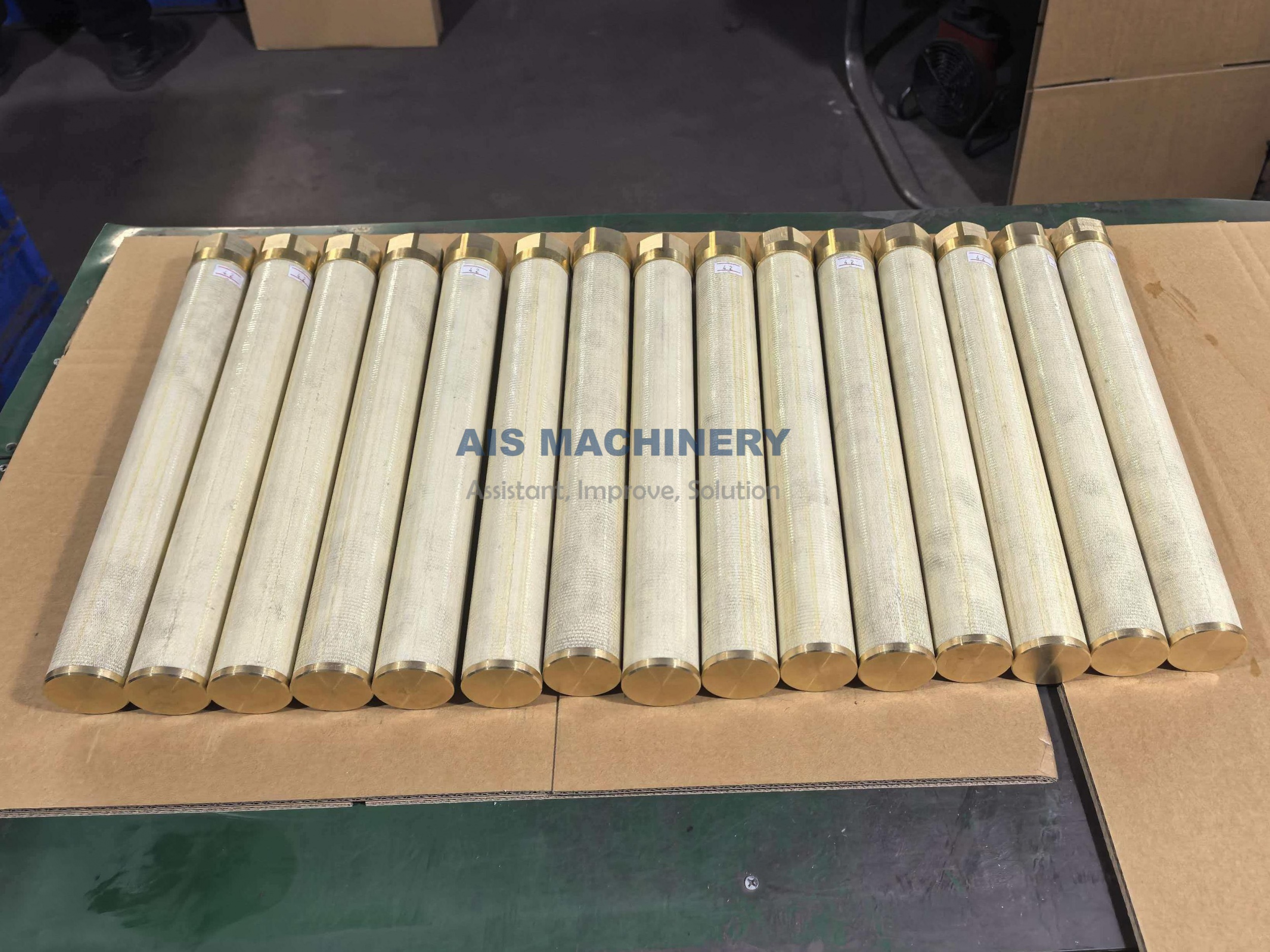

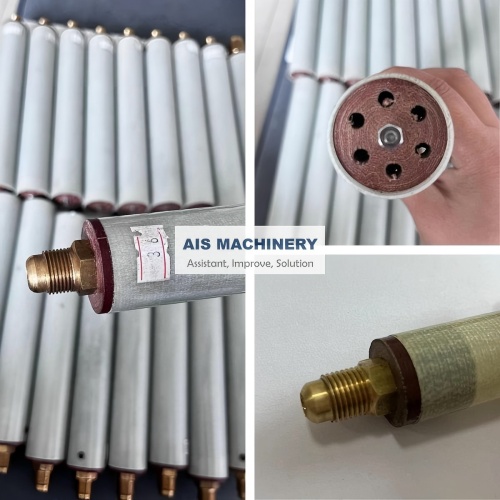

AIS Machinery supplies a complete range of ERW tube mill welding accessories, including standard impeders, return impeders, ferrite rods, insulating casings, and customized spare parts. Every impeder is manufactured according to customer dimensions to ensure compatibility with different tube mill brands and HF welding systems.

Our technical team can also assist with impeder selection for new production lines or replacement projects.

FAQ

Does a larger impeder always perform better?

No. The impeder should match the tube size and HF welding system. An oversized model may reduce welding efficiency.

How often should ferrite rods be replaced?

Replacement depends on production hours, material, and cooling conditions. Regular inspection is recommended rather than waiting for complete failure.

Can AIS Machinery manufacture custom impeders?

Yes. We produce customized impeders based on drawings or dimensional specifications.
