Automatic Stacking Machine (Magnetic Chuck Type)

In modern ERW tube mill production, automatic pipe handling is just as important as pipe forming and cutting. The Magnetic Chuck Type Automatic Stacking Machine is the latest stacking solution widely used for finished steel pipes.

Compared with traditional mechanical stacking methods, the magnetic chuck system offers smoother pipe transfer, higher automation, and more stable stacking quality. It helps manufacturers reduce manual handling while improving production efficiency.

Why We Use Magnetic Chuck Technology

Our latest tube mill projects are equipped with the Magnetic Chuck Type Automatic Stacking Machine because it provides reliable and consistent pipe collection after cutting.

Main advantages

• ✅Automatic pipe pickup and stacking

• ✅Smooth and stable pipe transfer

• ✅Reduced manual labor and handling

• ✅Suitable for continuous production lines

• ✅Compatible with round, square, and rectangular pipes

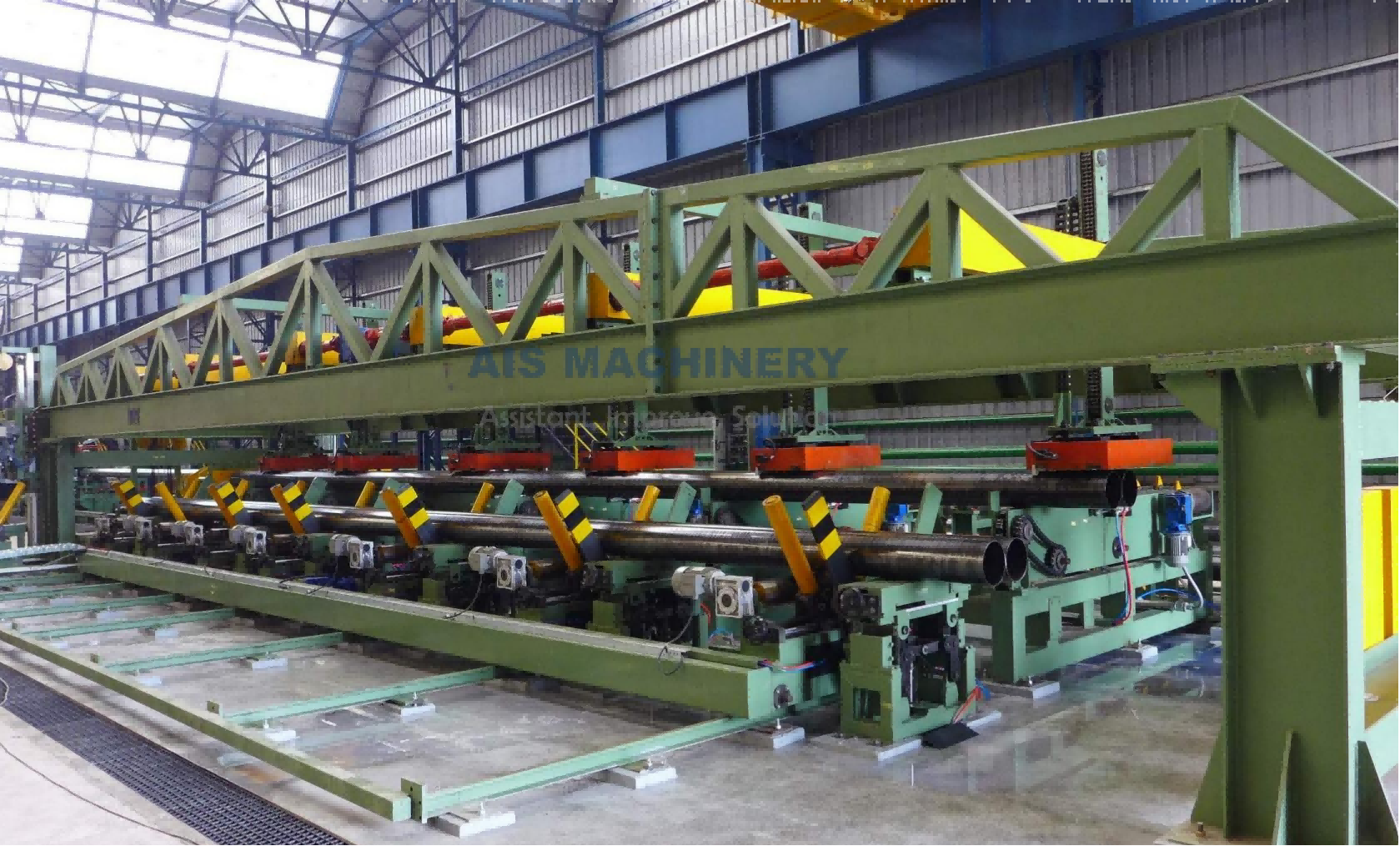

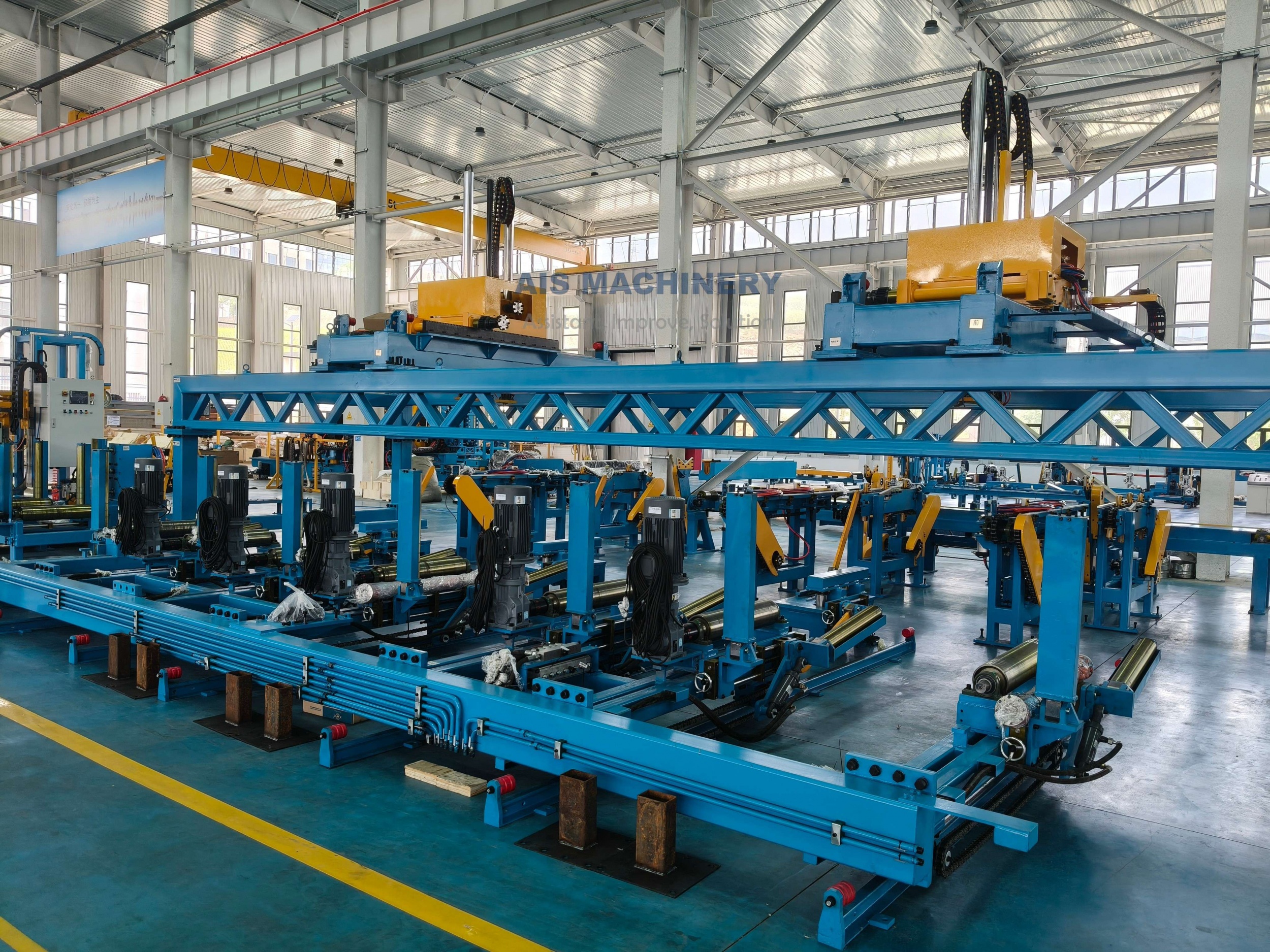

The magnetic chuck grips the finished pipe and places it neatly onto the stacking area, helping keep the production line organized and efficient.

Magnetic Chuck vs Traditional Mechanical Stacking

For manufacturers looking to upgrade their production line, the magnetic chuck type is becoming the preferred choice for modern automatic tube mills.

How It Works

The stacking process is simple and fully coordinated with the tube mill line:

1. The pipe is cut to the required length.

2. The finished pipe moves to the run-out area.

3. The magnetic chuck automatically picks up the pipe.

4. The pipe is transferred and stacked in an orderly bundle.

This automatic workflow helps maintain continuous production and reduces unnecessary pipe movement.

Applications

The Magnetic Chuck Type Automatic Stacking Machine is suitable for a wide range of steel pipe production, including:

• ◆ERW round pipe

• ◆Square tube

• ◆Rectangular tube

• ◆Construction steel pipe

• ◆Furniture and structural tubing

It can be integrated with new tube mill lines or customized according to different production layouts.

Automatic Stacking + Automatic Strapping A More Efficient Combination

In most modern ERW tube mill projects, the Automatic Stacking Machine is commonly used together with an Automatic Strapping Machine. After the pipes are stacked neatly by the magnetic chuck, they are transferred directly to the strapping station for automatic bundling.

Benefits of the complete solution

• Fully automatic pipe stacking and bundling

• Reduced manual labor and handling time

• Neater and more consistent pipe bundles

• Improved production efficiency and workshop organization

• Easy integration with the complete tube mill line

By combining stacking and strapping in one continuous process, manufacturers can achieve a higher level of automation while preparing finished pipe bundles for storage or shipment more efficiently.

AIS Machinery can provide both the Magnetic Chuck Type Automatic Stacking Machine and the Automatic Strapping Machine as a complete pipe handling solution, with customized layouts to match different tube mill production lines.
