Round Ferrite Rod vs Rectangle Ferrite Rod: Which One Is Right for Your ERW Tube Mill?

Round Ferrite Rod vs Rectangle Ferrite Rod

Ferrite rods are essential consumable parts in every ERW Tube Mill high-frequency welding system. Installed inside the impeder, they concentrate the magnetic field and improve the efficiency of HF welding, resulting in stronger welds, lower power consumption, and more stable production.

At AIS Machinery, we supply both Round Ferrite Rods and Rectangle Ferrite Rods. While rectangle ferrite rods are available for specific applications, it is important to know that round ferrite rods are still the most commonly used type in the majority of ERW tube mills worldwide.

This article explains the differences between the two types and how to choose the right ferrite rod for your production line.

What Is a Ferrite Rod?

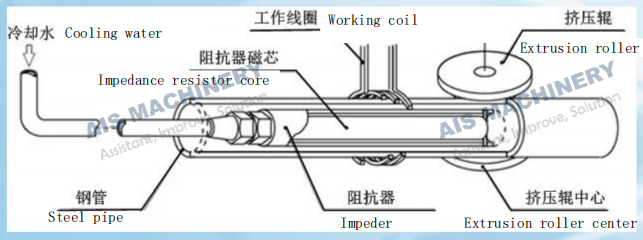

A ferrite rod is a magnetic ceramic core installed inside the impeder of an HF welder. Its job is to concentrate the high-frequency magnetic field into the V-shaped welding area, allowing the strip edges to heat efficiently before they are forged together by the squeeze rolls.

Main Functions

• Increase high-frequency welding efficiency

• Concentrate magnetic flux at the weld seam

• Reduce electrical energy loss

• Improve weld quality and penetration

• Maintain stable production performance

Although small in size, ferrite rods have a significant influence on the overall performance of the welding system.

Round Ferrite Rod: The Industry Standard

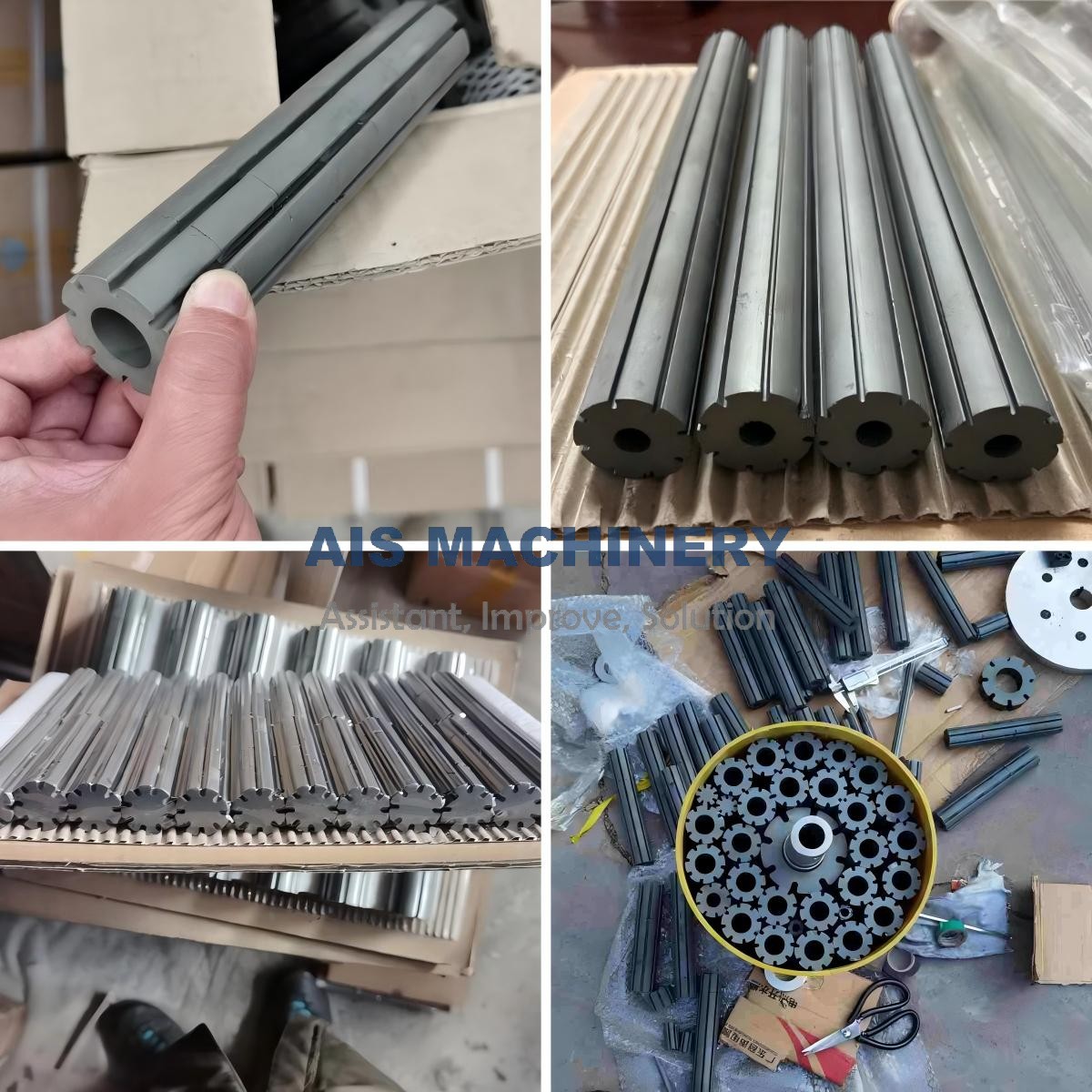

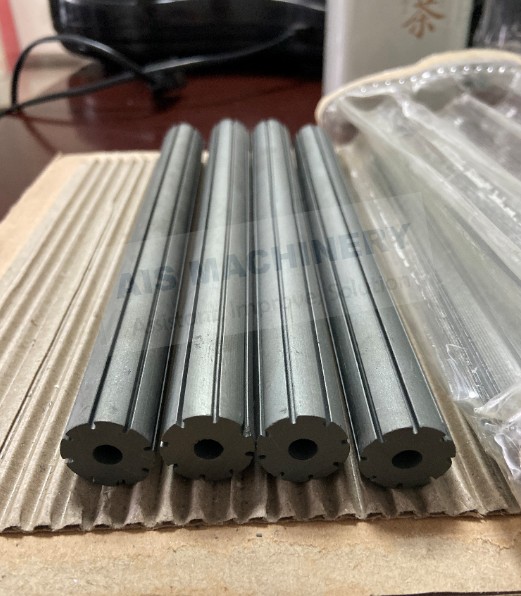

For most ERW tube mills, round ferrite rods are the standard and most widely used choice. They are compatible with conventional round impeder designs and provide reliable welding performance for a wide range of tube sizes.

Why are round ferrite rods so common?

• Suitable for most standard impeders

• Easy to replace and maintain

• Excellent magnetic performance

• Lower replacement cost

• Widely available in different diameters

Whether producing carbon steel, galvanized steel, or stainless steel tubes, round ferrite rods remain the preferred solution for the majority of production lines.

Rectangle Ferrite Rod: A Higher-Efficiency Option

Besides round ferrite rods, AIS Machinery also offers Rectangle Ferrite Rods for customers using specially designed impeders.

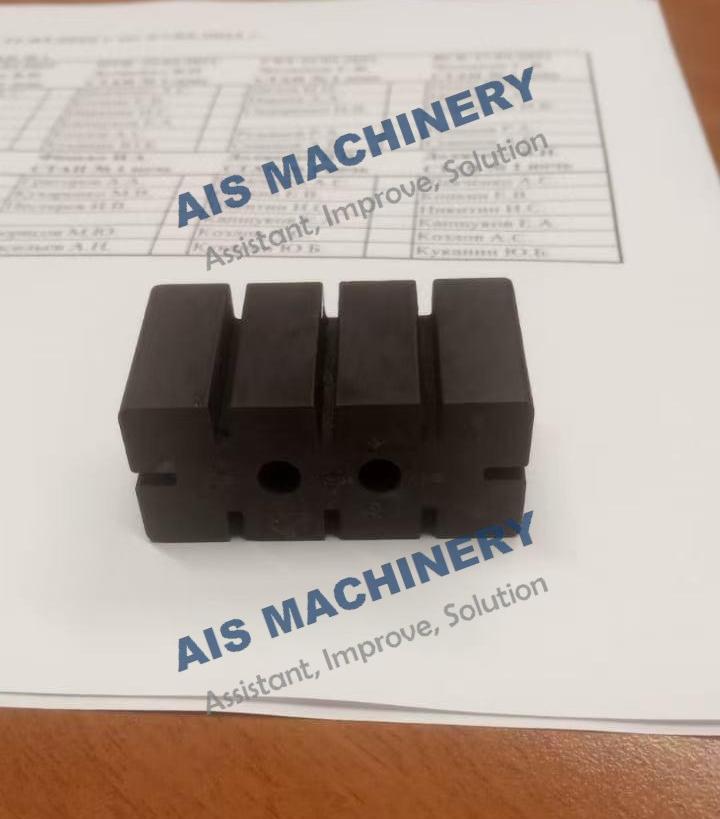

Rectangle ferrite rods provide a larger magnetic cross-sectional area, allowing better utilization of the impeder cavity. They are typically selected for medium and large tube mills with higher-power HF welding systems.

Typical applications

• Large diameter ERW tube mills

• High-power HF welders

• High-speed production lines

• Custom rectangle impeder designs

The 45 × 20 mm specification is the most commonly used rectangle ferrite rod in the industry.

Round vs Rectangle Ferrite Rod

In simple terms, round ferrite rods are suitable for most customers, while rectangle ferrite rods are usually chosen only when the impeder is specifically designed for them.

Common Rectangle Ferrite Rod Size

Rectangle ferrite rods are generally identified by their cross-sectional dimensions rather than diameter.

Note: The most frequently supplied specification is 45 × 20 × 200 mm, and custom lengths are available upon request.

How to Choose the Right Ferrite Rod

The correct ferrite rod depends more on the impeder design than on the pipe diameter alone.

Choose Round Ferrite Rod if:

• Your tube mill uses a standard round impeder

• You produce small or medium diameter pipes

• You need the most common and economical solution

• You want easy replacement and maintenance

Choose Rectangle Ferrite Rod if:

• Your impeder is designed for rectangle ferrite rods

• You operate a higher-power HF welder

• You produce medium or large diameter tubes

• Maximum magnetic efficiency is required

Before ordering, we recommend providing:

• Tube diameter range

• Wall thickness

• HF welder power

• Impeder drawing or inner dimensions

• Existing ferrite rod size

This allows us to recommend the most suitable specification for your tube mill.

AIS Machinery Ferrite Rod Solutions

AIS Machinery supplies a complete range of ERW Tube Mill Ferrite Rods, including both round and rectangle types. While round ferrite rods are the most commonly supplied products for standard tube mills, we also manufacture 45 × 20 mm rectangle ferrite rods and other customized specifications according to customer drawings.

With stable magnetic performance, precise dimensions, and reliable quality, our ferrite rods are designed to improve welding efficiency and reduce production costs.
